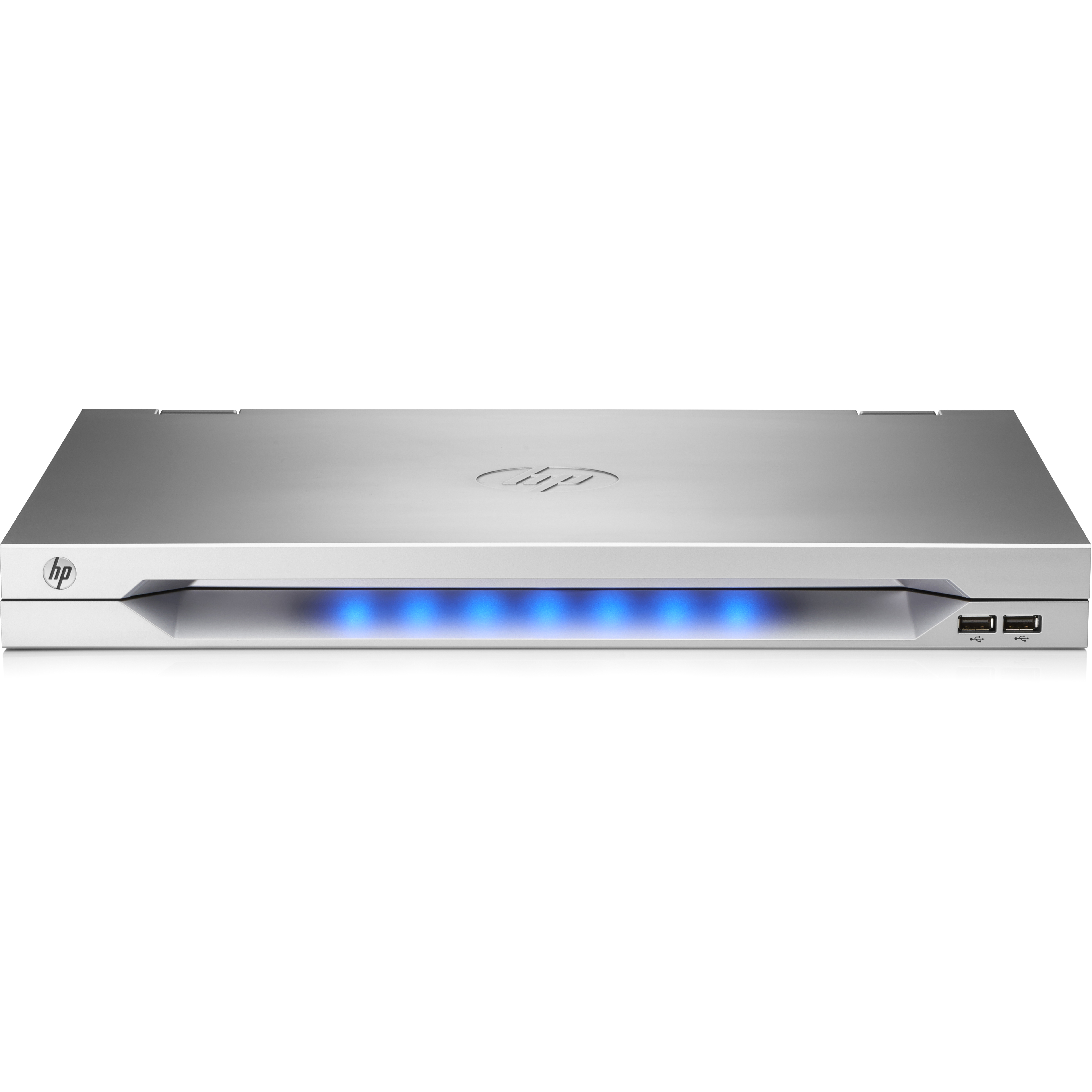

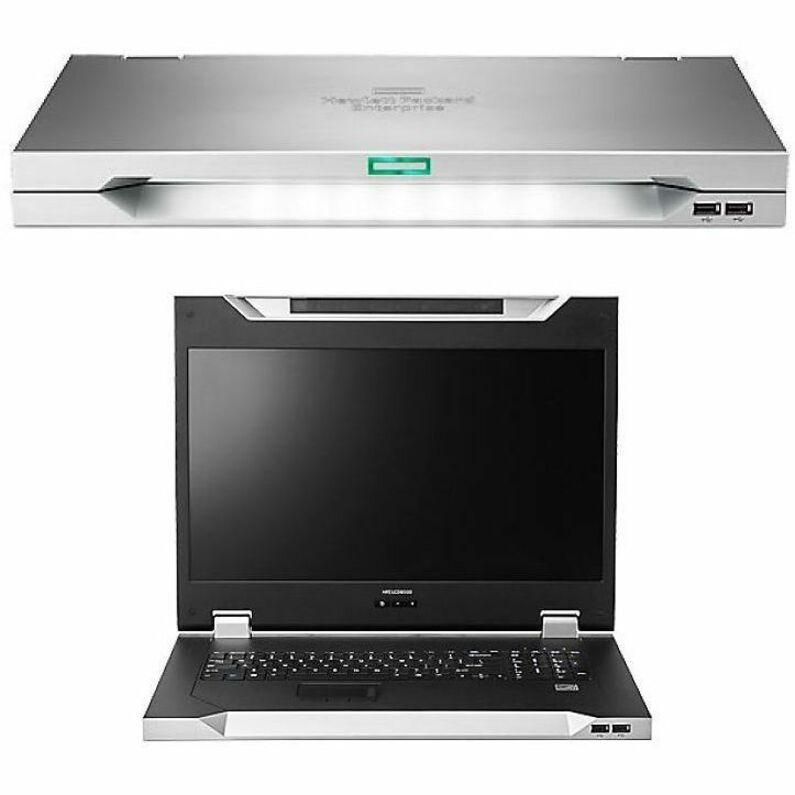

HPE LCD8500 1U US TAA Rackmount Console Kit
HPE LCD8500 1U US TAA Rackmount Console Kit - 1 Computer(s) - 18.5" LCD - WXGA+ - 1600 x 1200 - 16:9 - 2 x USB - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - Silver - TAA Compliant
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
- Product Type
- LCD Rack Console
- Display Screen Type
- LCD
- USB
- Yes
- Number of USB Ports
- 2
- Number of Computers Supported
- 1
- TAA Compliant
- Yes
- Device Type
- LCD Rack Console
- Product Color
- Silver
Overview
HPE LCD8500 1U US TAA Rackmount Console Kit - 1 Computer(s) - 18.5" LCD - WXGA+ - 1600 x 1200 - 16:9 - 2 x USB - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - Silver - TAA Compliant (part number AF645A) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Rackmount LCDs category. Display Screen Type: LCD.
The HPE LCD8500 1U Rackmount Console Kit is an ultra - dense, high - performance KVM console that combines a full 18.5 - inch LCD monitor with keyboard and touch pad in a 1U form factor. The 1U rackmount form factor is designed to allow a KVM console switch to be mount ed directly behind it. The WXGA TFT LCD brightview display supports most common video resolutions, from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates. The LCD8500 1U Rackmount Console Kit features a new silver enclosure making identific atio n in the rack much easier. The rackmount keyboard includes a three -button touch pad with four (4) scroll k eys and Windows shortcut keys. The LCD8500 1U Rackmount Console Kit also includes a new Lid Switch display management feature that shuts off the displ ay backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
• The LCD8500 1U Rackmount Console Kit combines a full 18.5 inch WXGA+ monitor and keyboard with touch pad in a 1U format with enough room to mount an HPE KVM switch behind it. Tool- less rails ease installation. • 1600 x 1200 WXGA TFT LCD B right V iew anti - glare display supports most commonly used resolutions. • Offers support of common video resolutions from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates. • Guarantees a flicker - free picture that is sharper in focus than a CRT monitor. • Allows a variety of connection options.
Key specifications: Display Screen Type: LCD · Screen Mode: WXGA+ · Screen Size: 18.5" mm · Aspect Ratio: 16:9 · Screen Resolution: 1600 x 1200 · Keyboard: Yes · Pointing Device Type: TouchPad · Power Consumption: 36 W W.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Display & Graphics
- Display Screen Type
- LCD
- Screen Mode
- WXGA+
- Screen Size
- 18.5" mm
- Aspect Ratio
- 16:9
- Screen Resolution
- 1600 x 1200
Input Devices
- Keyboard
- Yes
- Pointing Device Type
- TouchPad
Power Description
- Power Consumption
- 36 W W
- Input Voltage
- 120 V AC, 230 V AC
Warranty
- Limited Warranty
- 3 Year Year
Physical Characteristics
- Product Color
- Silver
- Height
- 1.7" mm
- Width
- 17.2" mm
- Depth
- 17.1" mm
- Rack Height
- 1U
- Weight (Approximate)
- 11.46 lb g
Miscellaneous
- Environmentally Friendly
- Yes
- TAA Compliant
- Yes
Interfaces/Ports
- USB
- Yes
- Number of USB Ports
- 2
General Information
- Product Type
- LCD Rack Console
- Product Model
- LCD8500
Technical Information
- Number of Computers Supported
- 1
- Device Type
- LCD Rack Console
