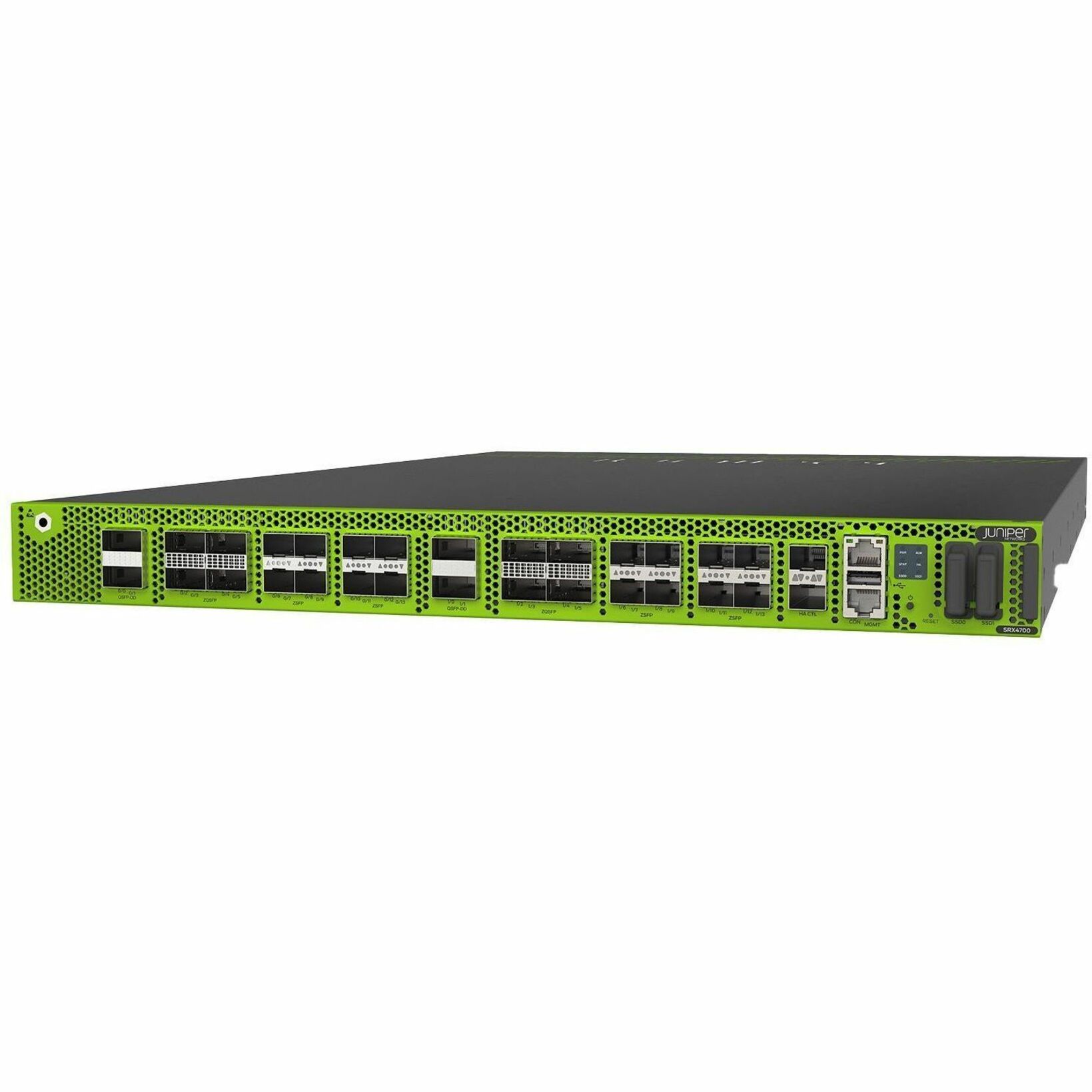

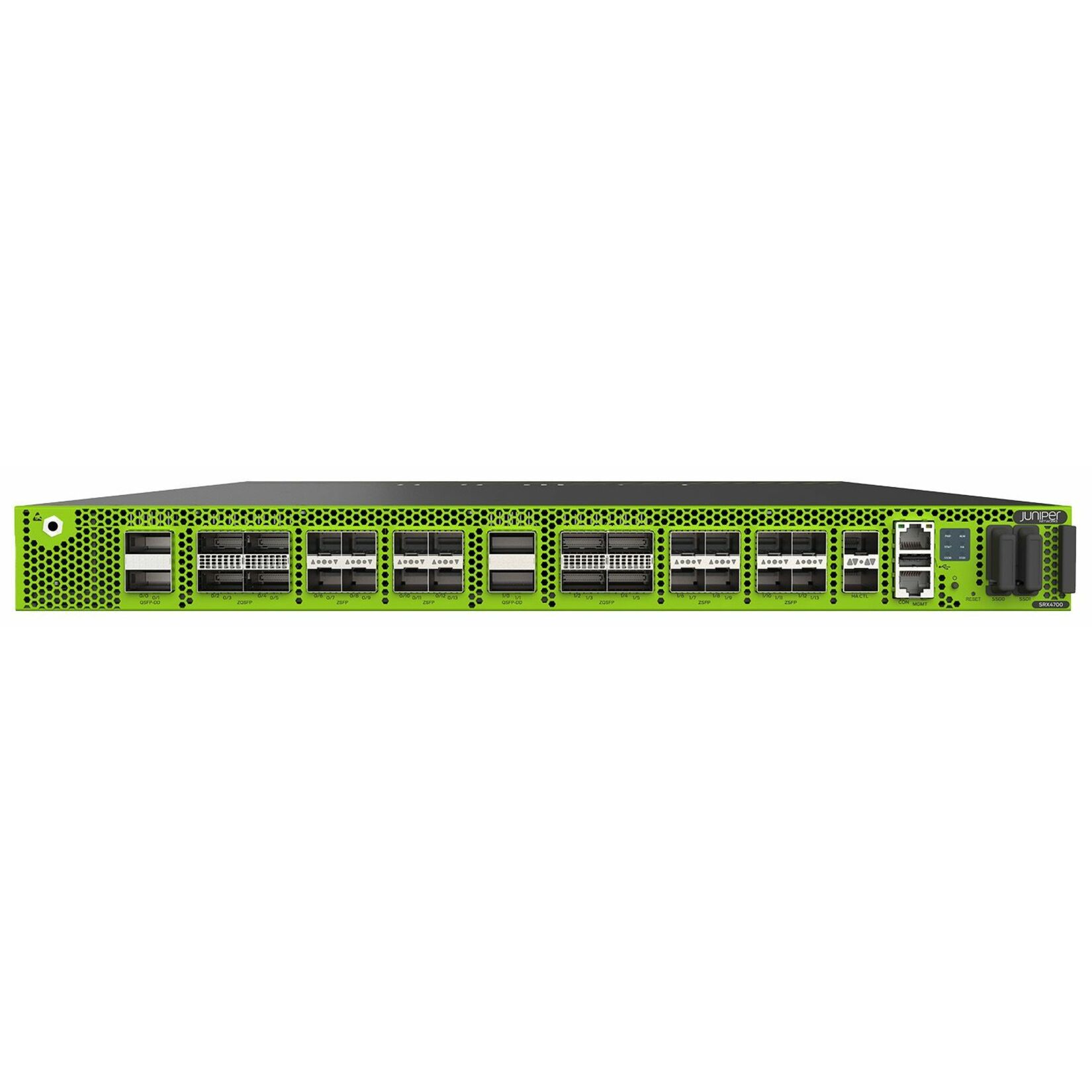

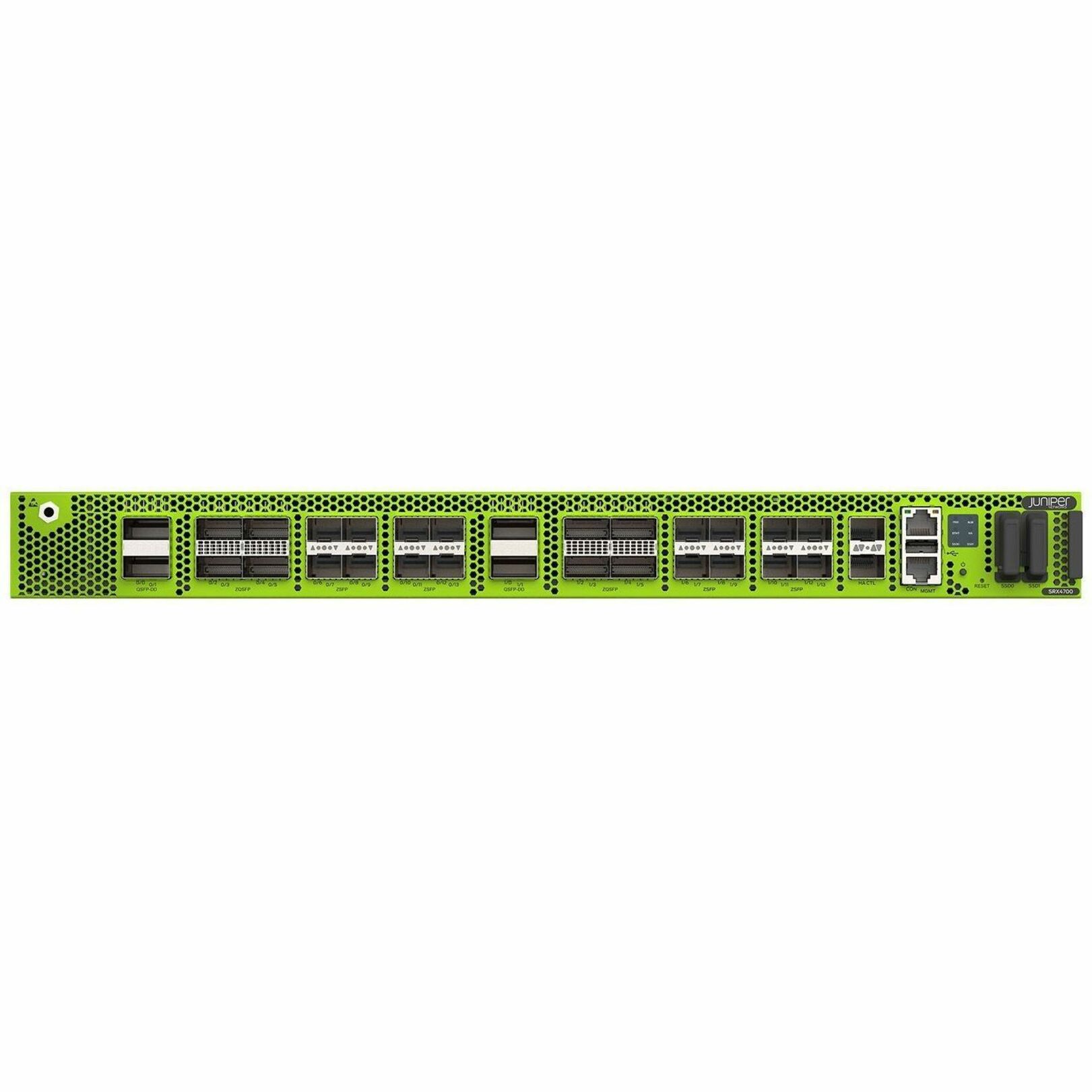

Juniper SRX4700 High Availability Firewall - Intrusion Prevention - 100GBase-X - 400 Gigabit Ethernet - 150 Gbit/s Firewall TRepresentative image
Networking

Juniper SRX4700 High Availability Firewall

Juniper SRX4700 High Availability Firewall - Intrusion Prevention - 100GBase-X - 400 Gigabit Ethernet - 150 Gbit/s Firewall Throughput - SSL, DES-CBC, AEC-CBC, AES-GCM, MD5, SHA-256, 3DES-CBC, SHA-196 - 7500 VPN - 28 Total Expansion Slots - 1U - Rack-mountable

Mfr #: SRX4700-1400-AC
Request a price

GPC-payable · TAA-compliant configuration on request · usually back within one business day.

Detailed quote

Free download

Documents

Product Type
High Availability Firewall
Ethernet Technology
400 Gigabit Ethernet
Product Family
SRX
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 6
AI-powered
Yes
AI Features
Threat Prevention
Connectivity Technology
Wired
Form Factor
Rack-mountable

Overview

Juniper SRX4700 High Availability Firewall - Intrusion Prevention - 100GBase-X - 400 Gigabit Ethernet - 150 Gbit/s Firewall Throughput - SSL, DES-CBC, AEC-CBC, AES-GCM, MD5, SHA-256, 3DES-CBC, SHA-196 - 7500 VPN - 28 Total Expansion Slots - 1U - Rack-mountable (part number SRX4700-1400-AC) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the Juniper Network Security & Firewalls category. Manageable: Yes.

Product Overview As data centers evolve from traditional architecture to distributed, the firewall's role needs to expand. Rather than being a perimeter technology, firewalls need to be part of a security fabric woven throughout the network. A security fabric will ensure that security is maintained at every point of connection. Juniper Networks SRX4700 next-generation firewall is integral to this new architecture, and it empowers organizations to operationalize security across their networks. This 1U, power-efficient firewall features built-in zero-trust, Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) fabric integration and AI-Predictive Threat Prevention to secure your network. The SRX4700 firewall delivers the industry's highest throughput, per rack unit, at up to 1.4 Tbps, and supports 400 Gbps interfaces with wire speed MACsec. Product Description Juniper Networks ® SRX4700 is a high-performance, next-generation firewall (NGFW) designed for service providers, cloud providers, and large enterprises. In addition, enterprises can deploy the SRX4700 as data center core and data center edge firewalls and as a secure SD-WAN hub. Combining industry-leading security effectiveness and carrier-grade routing with state-of-the-art switching, this platform delivers robust network security, effective threat protection, and comprehensive automation and mitigation capabilities. SRX4700 delivers NGFW features that support the changing needs of cloud-enabled enterprise networks and data centers. Whether rolling out new services on an enterprise campus, connecting to the cloud seamlessly, complying with industry standards, or achieving operational efficiency, the SRX4700 empowers organizations to operationalize zero-trust principles at scale while realizing business objectives. The SRX4700 protects critical corporate assets with features such as intrusion prevention system (IPS), follow-the-user and follow-the-application access policies, and Juniper's AI-Predictive Threat Prevention. Furthermore, SRX4700 works with Juniper's cloud security solutions to secure hybrid-cloud environments with networkwide visibility and control, providing consistently secure on-premises and cloud environments. For cloud providers, service providers, and enterprises, the hardware acceleration in SRX4700 protects data center core and edge workloads at Layer 7 at wirespeed with industry-leading security efficacy. The SRX4700 adheres to industry-standard EVPN type 5 and VXLAN protocols within these data centers, enabling the SRX4700 to act as a secure, fabric-aware leaf in the spine-leaf architecture and uniquely streamlining security workflows within the data center. And the SRX4700 does all this while delivering the highest firewall performance per rack unit of any data center firewall available today. Service providers offering 4G and 5G services can take advantage of the proven software in SRX4700 that secures dozens of Tier 1 service providers around the world. Use cases supported with high-performance hardware acceleration include security gateway, Gi / N6 firewall, CGNAT, and roaming firewall. Service providers with power and space constraints can deploy the SRX4700 in both distributed and centralized locations and secure their networks at terabit speeds while consuming only a single rack unit within their data centers.

• Offers reliable firewall synchronization to prevent a single point of failure on your network with maximum productivity • Stateful Packet Filtering firewall protection support offers maximum usability with feasible security for your precious data • DES-CBC encryption standard for reliable protection of your precious and valuable data from unauthorized access • 400 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information • Rack mounting enables you to organize wires & secure cables for professional installation

Key specifications: Manageable: Yes · Compatible Rack Unit: 1U · Height: 1.7" mm · Width: 17.4" mm · Depth: 26.5" mm · Form Factor: Rack-mountable · Weight (Approximate): 40 lb g · Encryption Standard: SSL, DES-CBC, AEC-CBC, AES-GCM, MD5, SHA-256, 3DES-CBC, SHA-196.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols
Manageable
Yes
Physical Characteristics
Compatible Rack Unit
1U
Height
1.7" mm
Width
17.4" mm
Depth
26.5" mm
Form Factor
Rack-mountable
Weight (Approximate)
40 lb g
Technical Information
Encryption Standard
SSL, DES-CBC, AEC-CBC, AES-GCM, MD5, SHA-256, 3DES-CBC, SHA-196
Firewall Throughput
150 Gbit/s Bps
Functionality
Intrusion Prevention
Number of VPN Supported
7500
Number of Concurrent Sessions (Max)
6e+07
AI-powered
Yes
AI Features
Threat Prevention
New Connections Per Second
600000
Connectivity Technology
Wired
Firewall Protection Supported
Stateful Packet Filtering, Anti-spam, Antivirus, SSL Inspection, Botnet Detection, Zero Day Event, Distributed Denial of Service (DDoS), Advanced Threat Protection, URL Filtering, Access Control, Threat Intelligence, Dead Peer Detection
I/O Expansions
Total Number of Expansion Slots
28
Expansion Slot Type
QSFP56-DD, QSFP28, SFP56
Miscellaneous
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 6
Package Contents
SRX4700 High Availability Firewall 2 x AC PSUs Cable
Media & Performance
VPN Throughput
11.25 GB/s Bps
IPS Throughput
13.75 GB/s Bps
Interfaces/Ports
USB
Yes
Network & Communication
Network Standard
100GBase-X
Ethernet Technology
400 Gigabit Ethernet
General Information
Product Type
High Availability Firewall
Product Series
SRX
Product Model
SRX4700
