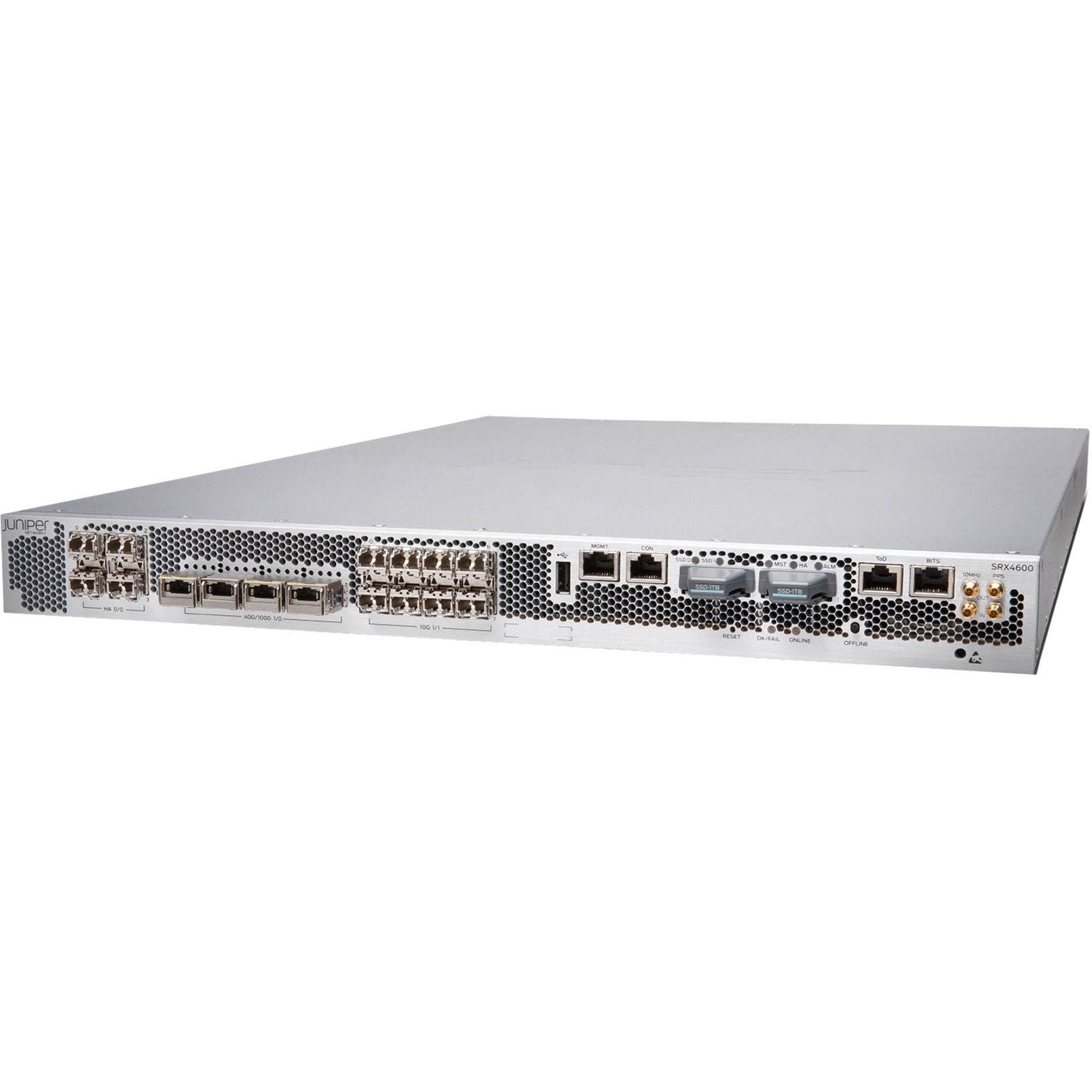

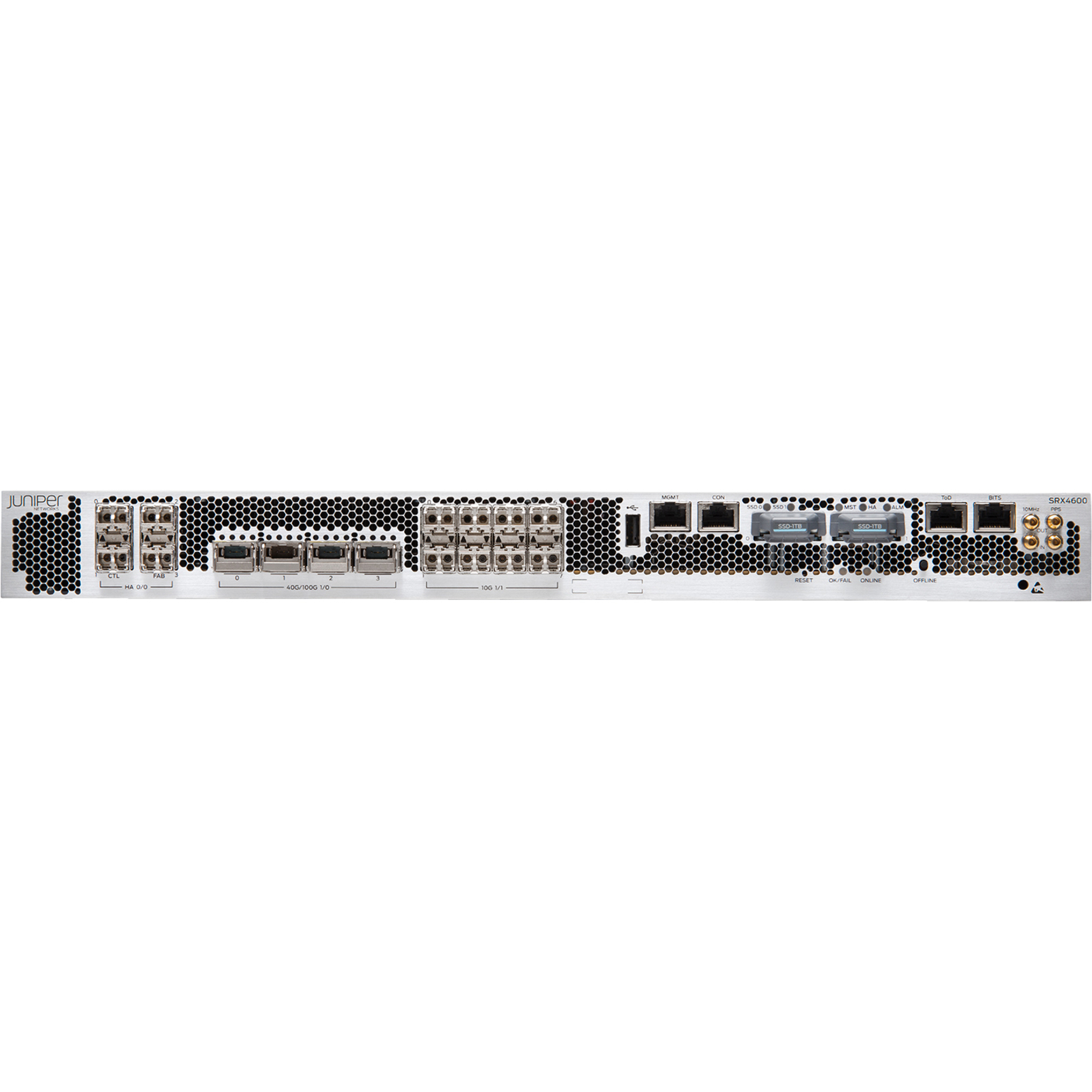

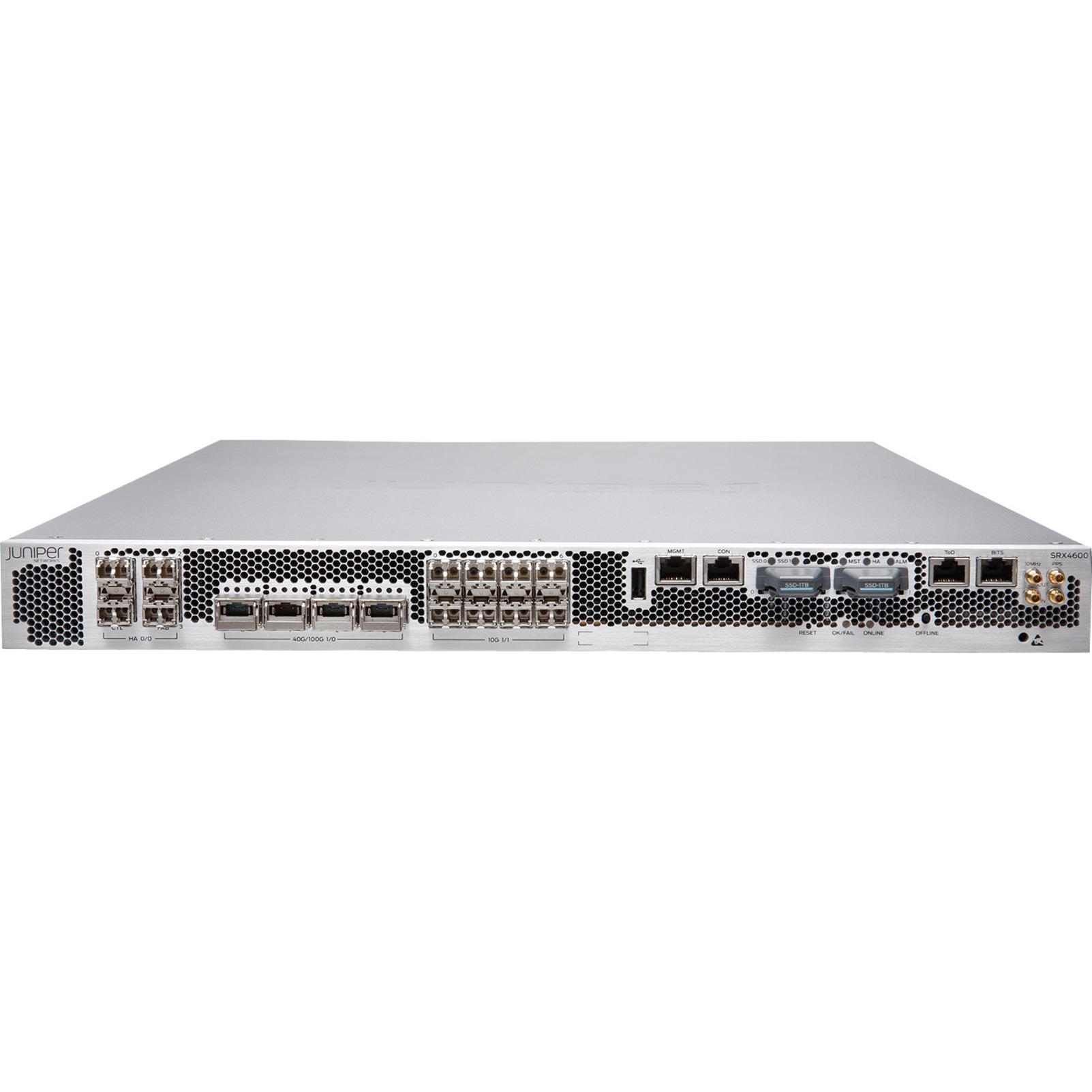

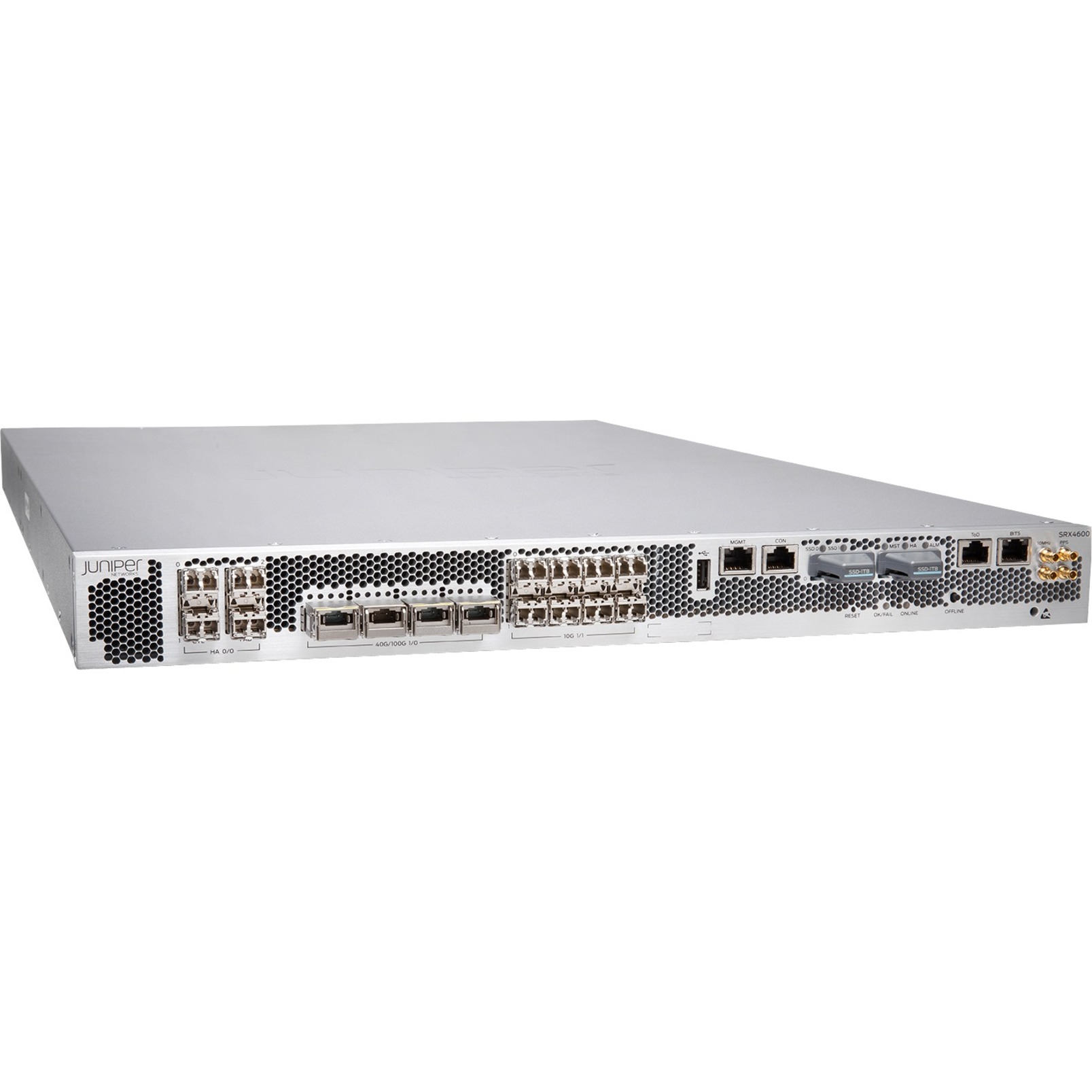

Representative imageJuniper SRX4600 Network Security Firewall
Juniper SRX4600 Network Security Firewall - 10/100Base-TX, 10GBase-X, 40GBase-X, 100GBase-X - 100 Gigabit Ethernet - 90 Gbit/s Firewall Throughput - AES (128-bit), SHA-256, 3DES, SHA-1, DES-CBC, AEC-CBC, AES-GCM, MD5, SHA-384, SSL - 28 Total Expansion Slots - 50 Hz, 60 Hz - 1U - Rack-mountable
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
- Product Type
- Network Security/Firewall Appliance
- Wireless LAN
- No
- Ethernet Technology
- 100 Gigabit Ethernet
- Product Family
- SRX4600
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
- Form Factor
- Rack-mountable
- Firewall Protection Supported
- Intrusion Prevention
- Firewall Protection Supported
- Advanced Threat Protection
Overview
Juniper SRX4600 Network Security Firewall - 10/100Base-TX, 10GBase-X, 40GBase-X, 100GBase-X - 100 Gigabit Ethernet - 90 Gbit/s Firewall Throughput - AES (128-bit), SHA-256, 3DES, SHA-1, DES-CBC, AEC-CBC, AES-GCM, MD5, SHA-384, SSL - 28 Total Expansion Slots - 50 Hz, 60 Hz - 1U - Rack-mountable (part number SRX4600-SYS-JB-AC) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the Juniper Network Security & Firewalls category. Manageable: Yes.
The SRX4600 Firewall protects mission-critical data center and campus networks for enterprises, mobile service providers, and cloud service providers. Designed for highperformance security services architectures, the SRX4600 protects critical corporate IT assets as a next-generation firewall (NGFW), acts as an enforcement point for cloud-based security solutions, and provides application visibility and control to improve the user and application experience. Integrating networking and security in a single platform, the SRX4600 features multiple high-speed interfaces, intrusion prevention, advanced threat protection, and authentication, along with high-performance IPsec VPN and Internet gateway capabilities. It also offers high scalability, high availability, robust protection, application visibility, user identification, and deep content inspection to provide unparalleled control over the security infrastructure. The SRX4600 also acts as a central enforcement point, leveraging vital automation and actionable intelligence to protect users in a multivendor network environment. The SRX4600 also delivers fully automated SD-WAN to both enterprises and service providers. Due to its high performance and scale, the SRX4600 acts as a VPN hub and terminates VPN/secure overlay connections in various SD-WAN topologies. The SRX4600 is powered by Juniper Networks Junos® operating system, the industryleading OS that keeps the world's largest mission-critical enterprise and service provider networks secure. Architecture and Key Components The SRX4600 hardware and software architecture provides cost-effective security in a small 1 U form factor. Purpose-built to protect network environments and provide Internet Mix (IMIX) firewall throughput up to 400 Gbps, the SRX4600 incorporates multiple security services and networking functions on top of Junos OS. Best-in-class security and advanced threat mitigation capabilities on the SRX4600 are offered as 33 Gbps of NGFW, 45.4 Gbps of intrusion prevention system (IPS), and up to 44 Gbps of IPsec VPN in data center, enterprise campus, and regional headquarter deployments with IMIX traffic patterns.
• Designed to be the central hub of all network security activity with maximum productivity • Stop intrusions to provide businesses with the essential network security with this firewall appliance that also supports intrusion prevention firewall protection • Keep all your data safe and secure from hackers and thieves by utilizing cipher based AES (128-bit) encryption that encrypts and decrypts data in blocks of 128 bits using cryptographic keys of 142-bit • 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your wired network connectivity • Rack mounting enables you to organize wires & secure cables for professional installation
Key specifications: Manageable: Yes · Environmentally Friendly: Yes · Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2 · Package Contents: SRX4600 Network Security Firewall 2 x AC Power Supply Unit 5 x Fan Trays Cables Rack Mount Kit · Compatible Rack Unit: 1U · Height: 1.7" mm · Width: 17.4" mm · Depth: 26.5" mm.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
- Package Contents

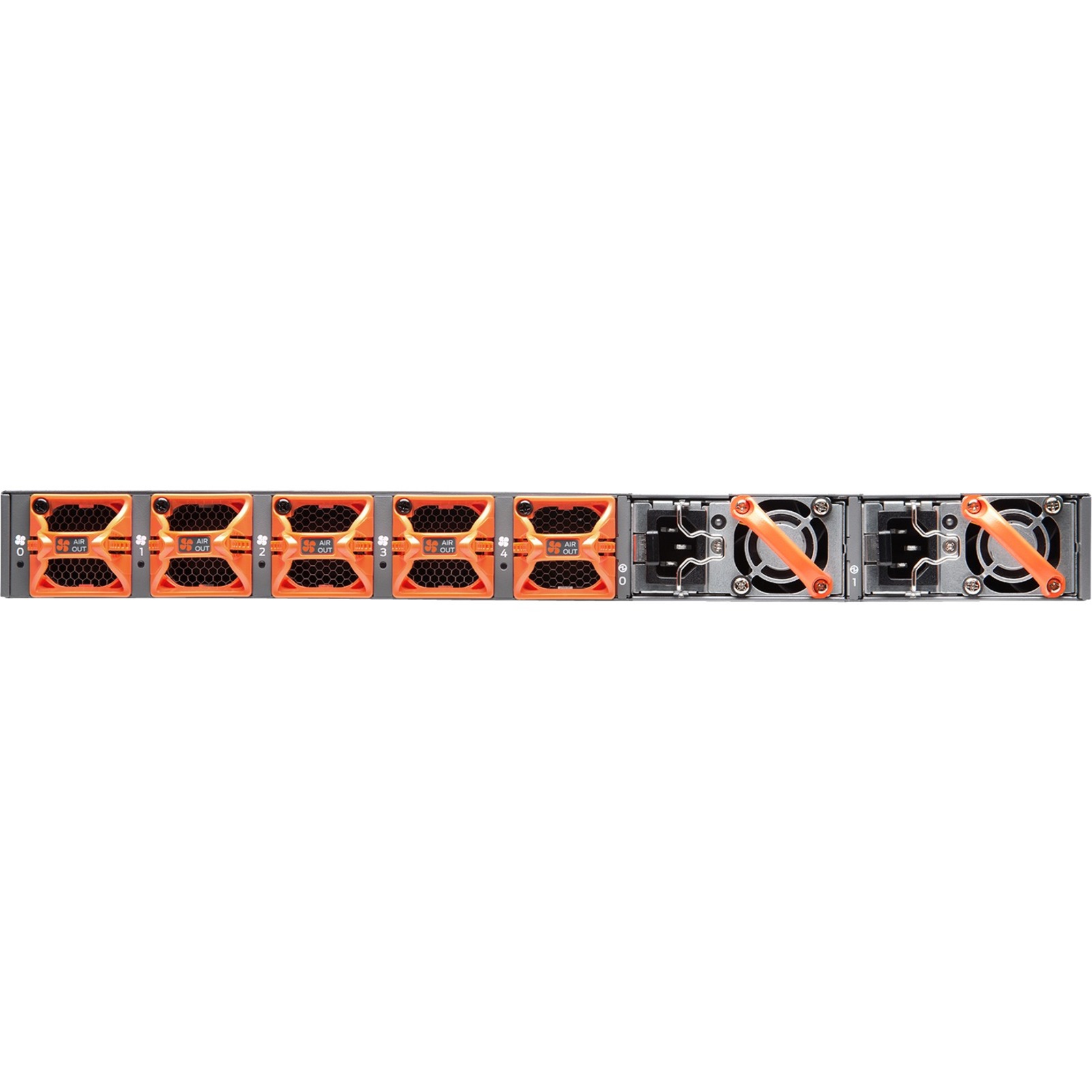

- SRX4600 Network Security Firewall 2 x AC Power Supply Unit 5 x Fan Trays Cables Rack Mount Kit
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 26.5" mm
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 38 lb g
Wireless Specifications
- Wireless LAN
- No
I/O Expansions
- Number of SFP+ Slots
- 24
- Total Number of Expansion Slots
- 28
- Expansion Slot Type
- SFP+, QSFP28
Power Description
- Frequency
- 50 Hz Hz, 60 Hz Hz
Warranty
- Limited Warranty
- 1 Year Year
Media & Performance
- VPN Throughput
- 4.75 GB/s Bps
Technical Information
- Encryption Standard
- AES (128-bit), SHA-256, 3DES, SHA-1, DES-CBC, AEC-CBC, AES-GCM, MD5, SHA-384, SSL
- Firewall Throughput
- 90 Gbit/s Bps
- Firewall Protection Supported
- Intrusion Prevention, Advanced Threat Protection, Deep Inspection Firewall, Stateful Packet Filtering, Distributed Denial of Service (DDoS), Access Control, Anti-spam, Antivirus, Dead Peer Detection, URL Filtering, Zero Day Event, Threat Intelligence
Interfaces/Ports
- USB
- Yes
Network & Communication
- Network Standard
- 10/100Base-TX, 10GBase-X, 40GBase-X, 100GBase-X
- Ethernet Technology
- 100 Gigabit Ethernet
General Information
- Product Type
- Network Security/Firewall Appliance
- Product Series
- SRX4600
