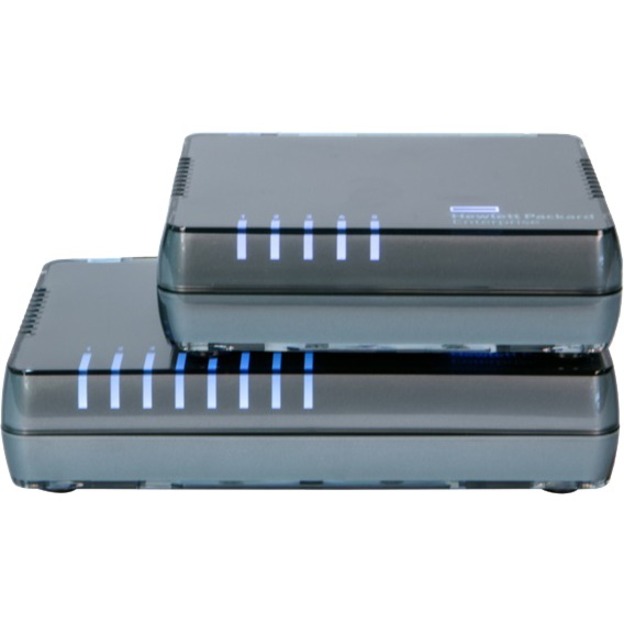

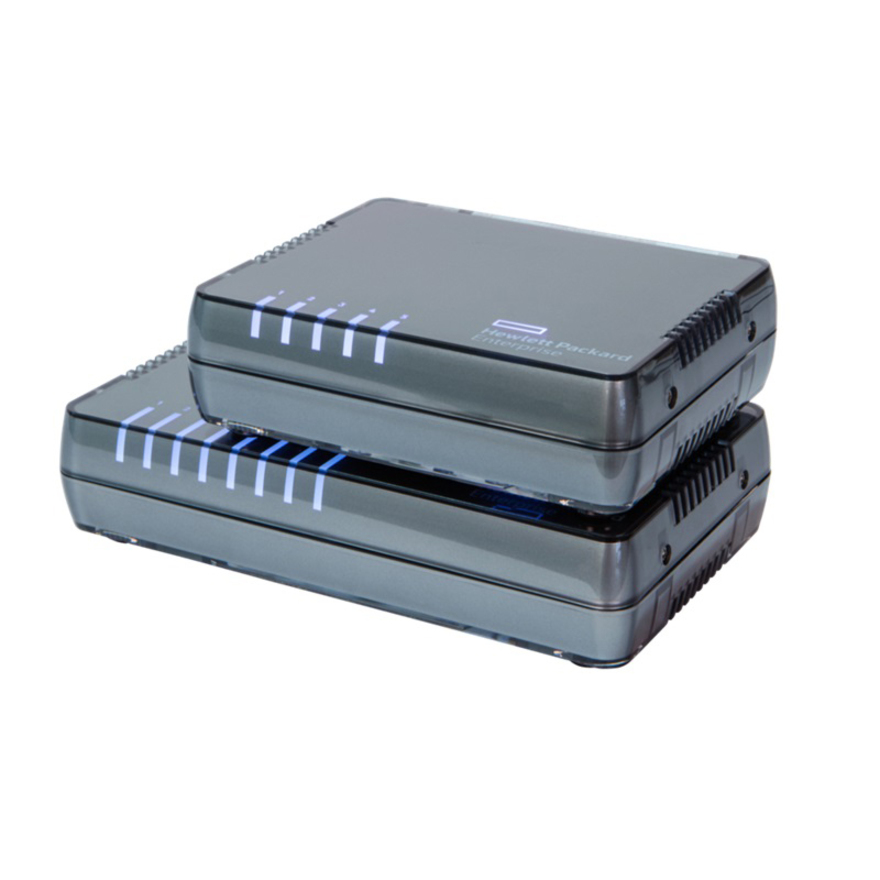

Representative imageHPE OfficeConnect 1405 5G v3 Switch
HPE OfficeConnect 1405 5G v3 Switch - 5 Ports - Gigabit Ethernet - 10/100/1000Base-TX - 2 Layer Supported - Twisted Pair - Desktop - 3 Year Limited Warranty
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Ethernet Switch
- Manageable
- No
- Ethernet Technology
- Gigabit Ethernet
- Product Family
- OfficeConnect 1405
- Stack Port
- No
- Media Type Supported
- Twisted Pair
- Total Number of Network Ports
- 5
- Redundant Power Supply Supported
- No
Overview
HPE OfficeConnect 1405 5G v3 Switch - 5 Ports - Gigabit Ethernet - 10/100/1000Base-TX - 2 Layer Supported - Twisted Pair - Desktop - 3 Year Limited Warranty (part number JH407A#ABA) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Switches & Bridges category. Manageable: No.
The HPE OfficeConnect 1405 Switch Series consists of plug-and-play unmanaged 5- and 8--port Layer 2 switches designed for small offices, in both Gigabit Ethernet and Fast Ethernet configurations. The 1405 Small Office switches are preconfigured for fast, easy installation, with connections using low-cost Ethernet copper cabling. They support administration-friendly features such as auto-negotiation and automatic cable type detection (MDI/MDIX), and are FCC Class B certified and approved for both business and home office locations. All models have energy-saving features such as Energy Efficient Ethernet (EEE) and idle-port power down. All models are fanless for quiet and "green" operation, and are designed for high reliability, long life, low power consumption, and low total cost of ownership. HPE OfficeConnect 1405 switches come with a 3-year warranty, which covers the unit and adapter.
• Entry-level switching for small offices • Plug and play; no configuration required • Energy efficient, with EEE and idle-port power down (v2 models) • Quality of Service (IEEE 802.1p and DSCP) • 3-year warranty
Key specifications: Manageable: No · Ethernet Technology: Gigabit Ethernet · Media Type Supported: Twisted Pair · Network Technology: 10/100/1000Base-TX · Modular: No · Uplink Port: No · Stack Port: No · Total Number of Network Ports: 5.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- No
Media & Performance
- Ethernet Technology
- Gigabit Ethernet
- Media Type Supported
- Twisted Pair
- Network Technology
- 10/100/1000Base-TX
Interfaces/Ports
- Modular
- No
- Uplink Port
- No
- Stack Port
- No
- Total Number of Network Ports
- 5
- Port/Expansion Slot Details
- 5 x Gigabit Ethernet Network
Warranty
- Limited Warranty
- 3 Year Year
Network & Communication
- Layer Supported
- 2
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
Power Description
- Redundant Power Supply Supported
- No
- Power Source
- Power Adapter
Physical Characteristics
- Height
- 1.4" mm
- Width
- 4.5" mm
- Depth
- 3.6" mm
- Form Factor
- Desktop
- Weight (Approximate)
- 6.40 oz g
General Information
- Product Type
- Ethernet Switch
- Product Series
- 1405
- Product Model
- 1405 5G v3
