Juniper MX480 vs Cisco NCS 540: Carrier-Class Chassis vs Compact Converged Access Router

The Juniper MX480 and Cisco NCS 540 sit at very different points on the service provider routing curve. The MX480 is a modular, Trio-powered carrier-class chassis built for high-scale provider edge, peering, and aggregation, while the NCS 540 is a compact, fixed-form converged access router engineered for cell-site, access, and pre-aggregation deployments. This comparison breaks down where each platform actually belongs so you size the right router for the right tier.

Get a quote See the specs

The short answer

The Juniper MX480 wins for any role that needs deep MPLS/EVPN scale, large routing tables, subscriber management, or multi-terabit aggregation in a single modular chassis. The Cisco NCS 540 wins at the access edge and cell site, where its compact 1RU/2RU form factor, temperature-hardened design, and IOS XR feature set deliver converged access economically. These are complementary, not interchangeable: pick the MX480 when scale and modularity dominate, and the NCS 540 when footprint, power, and access density dominate. Most service provider designs deploy both, with NCS 540 at the access layer feeding MX480 aggregation and edge.

Juniper MX480 vs Cisco NCS 540, head to head

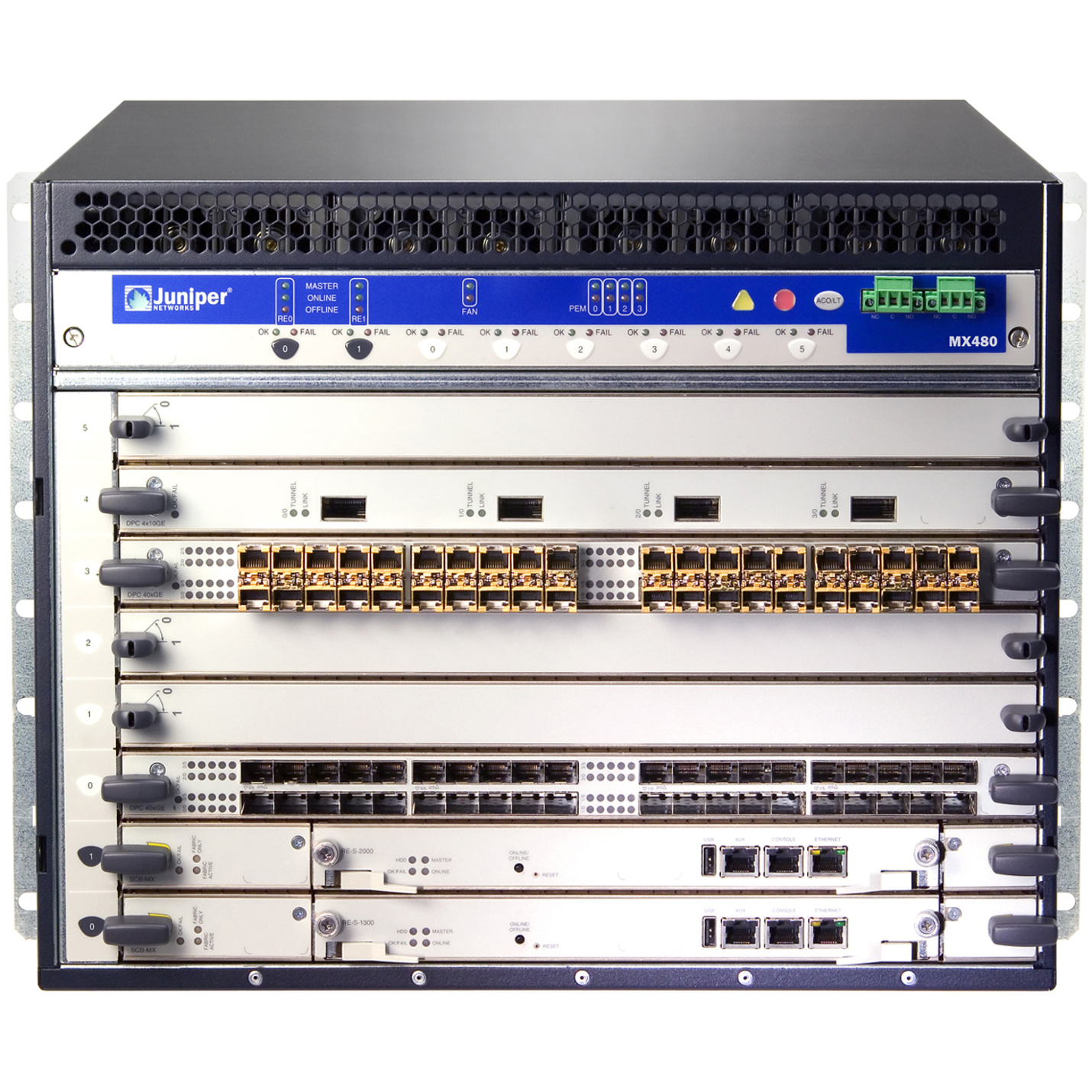

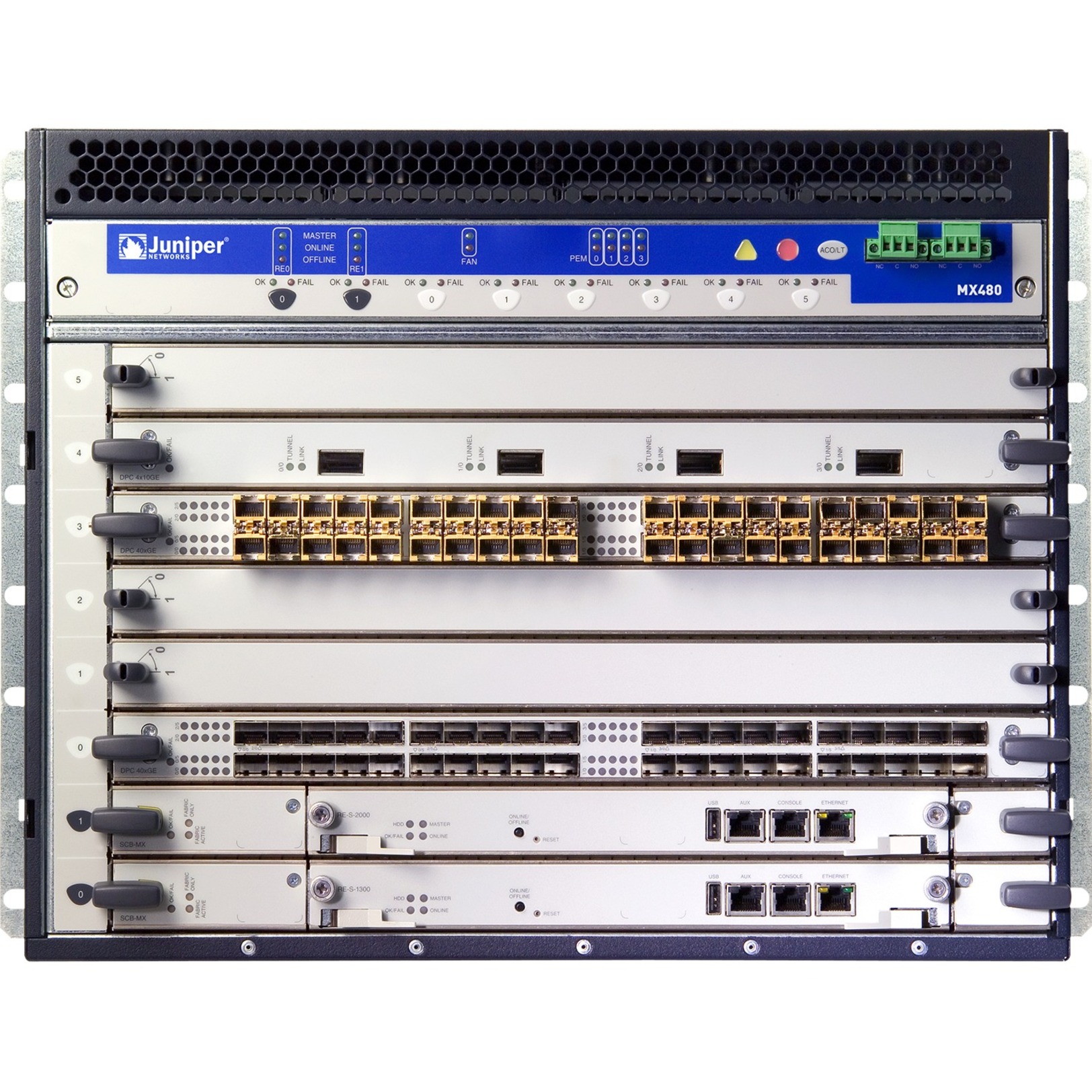

Juniper MX480

Cisco NCS 540

Performance

Up to 5.76 Tbps fabric, multi-terabit edgeadvantage

~1 Tbps on large-density access models

Scalability

Modular 8-slot chassis, MPC10E up to 1.5 Tbps/slotadvantage

Fixed form factor, scale by adding boxes

Management / Automation

Junos, NETCONF/YANG, telemetry, Paragon/Apstra

IOS XR, model-driven telemetry, Crosswork

Security

Mature MPLS isolation, firewall filters, MACsec

Segment routing, MACsec, IOS XR hardening

Ecosystem / Lock-in

Junos consistent across MX/EX/QFX

Cisco IOS XR family, broad install base

Support

Juniper/HPE JTAC, Care plans

Cisco TAC, SMARTnet/Solution Support

Price / Value

Higher entry, best $/Gbps at scale

Lower entry cost for access tieradvantage

Federal / TAA

TAA-capable, common on federal SP networks

TAA-capable, broad federal presence

Specifications side by side

Form factor: Modular chassis, 8U; Fixed compact, 1RU/2RU models
Slots: 8 (up to 6 MPC/DPC, 2 SCB); Fixed; no line-card slots
Max switch fabric capacity: Up to 5.76 Tbps; Up to ~1 Tbps (large-density)
Per-slot capacity: 480 Gbps baseline, up to 1.5 Tbps (MPC10E); N/A (fixed)
Interface speeds: 1GbE to 400GbE via MPC/MIC; 1/10/25/40/100/400GbE (model dependent)
100GbE density (line rate): Up to 24x 100GbE fully populated; Up to 2x 40/100GbE on common access models
Forwarding silicon: Juniper Trio chipset; Cisco merchant/IOS XR forwarding ASICs
Operating system: Junos OS; Cisco IOS XR
Routing / fabric features: MPLS, EVPN-VXLAN, segment routing, BNG; Segment routing, EVPN, MPLS, app awareness
Redundancy: Dual SCB, redundant RE, power, fans; Redundant power; limited on fixed models
Environmental: Standard data center / CO; Temperature-hardened, outdoor-capable models
Typical role: Provider edge, peering, aggregation; Cell site, access, pre-aggregation

Where Juniper MX480 wins

Modular 8-slot chassis scales to multi-terabit edge and aggregation roles
Up to 5.76 Tbps fabric with Trio MPCs reaching 1.5 Tbps per slot
Deep MPLS, EVPN-VXLAN, segment routing, and broadband network gateway (BNG) feature set
Junos OS is consistent across MX routers, EX switches, and QFX fabric
Strong investment protection via line-card upgrades within the same chassis

Where Cisco NCS 540 wins

Compact, power-efficient 1RU/2RU footprint ideal for access and cell sites
Temperature-hardened, outdoor-capable models for harsh deployment environments
Lower entry cost for access and pre-aggregation tiers
IOS XR with segment routing, EVPN, and model-driven telemetry
Broad Cisco install base and operational familiarity for IOS XR teams

Which one should you buy?

Multi-100G provider edge and internet peering

Pick Juniper MX480. The modular chassis, large routing-table capacity, and high 100GbE line-rate density make it the right tier for PE and peering roles.

Cell-site router or remote access aggregation

Pick Cisco NCS 540. Its compact, temperature-hardened form factor and lower cost suit space- and power-constrained access locations.

Subscriber management / broadband network gateway

Pick Juniper MX480. MX's BNG and subscriber-scale features are purpose-built for high-density subscriber termination that the access-focused NCS 540 is not sized for.

Metro Ethernet access feeding a core ring

Pick Cisco NCS 540. Converged access with segment routing and EVPN delivers cost-effective metro access while the heavy lifting stays upstream.

Single-chassis aggregation with headroom for growth

Pick Juniper MX480. Adding or upgrading MPCs scales capacity in place, avoiding a forklift as traffic grows.

Frequently asked

What is the main difference between the Juniper MX480 and Cisco NCS 540?

The MX480 is a modular, multi-terabit carrier-class chassis for provider edge and aggregation, while the NCS 540 is a compact, fixed-form converged access router for cell sites and access layers. They target different tiers of the same service provider network rather than competing head-to-head at the same scale.

Is the Cisco NCS 540 a chassis-based router like the MX480?

No. The NCS 540 is a fixed-form-factor router in compact 1RU/2RU models with no line-card slots, so you scale by adding units. The MX480 is an 8-slot modular chassis where you scale capacity by adding or upgrading Trio MPC line cards in place.

Which router has higher throughput, the MX480 or NCS 540?

The MX480 is far higher capacity, with an aggregate switch fabric of up to 5.76 Tbps and up to 1.5 Tbps per slot using MPC10E cards. The NCS 540 large-density models deliver around 1 Tbps, which is well-matched to access and pre-aggregation rather than core edge.

Do both support segment routing and EVPN?

Yes. The MX480 supports MPLS, EVPN-VXLAN, and segment routing under Junos OS, and the NCS 540 supports segment routing and EVPN under IOS XR. The key difference is the scale and role each is engineered to handle, not the protocol checklist.

Which is better for a cell-site or outdoor deployment?

The NCS 540 is the better fit, with temperature-hardened, power-efficient, outdoor-capable models designed for fronthaul and access at the cell site. The MX480 is a data center and central-office chassis, not an outdoor access device.

How do management and automation compare?

Both are strong. The MX480 uses Junos with NETCONF/YANG, streaming telemetry, and Juniper Paragon/Apstra automation, while the NCS 540 uses IOS XR with model-driven telemetry and Cisco Crosswork. Your existing operational tooling and team skills usually decide which is easier to run.

Are the MX480 and NCS 540 available on TAA-compliant GPC, SAP, or FAR-based orders?

Both Juniper and Cisco offer TAA-capable configurations widely used in federal service provider and agency networks. As an authorized HPE and HPE Juniper Networking reseller, we can source compliant MX480 configurations for TAA, GSA, and SAP/FAR channels procurement and advise on the equivalent contract paths.

Should I buy one platform or deploy both?

Most service provider architectures use both: NCS 540 at the access and cell-site edge feeding MX480 aggregation and provider edge upstream. If you must pick one, choose by tier, the MX480 for scale and modularity, the NCS 540 for compact access economics.
