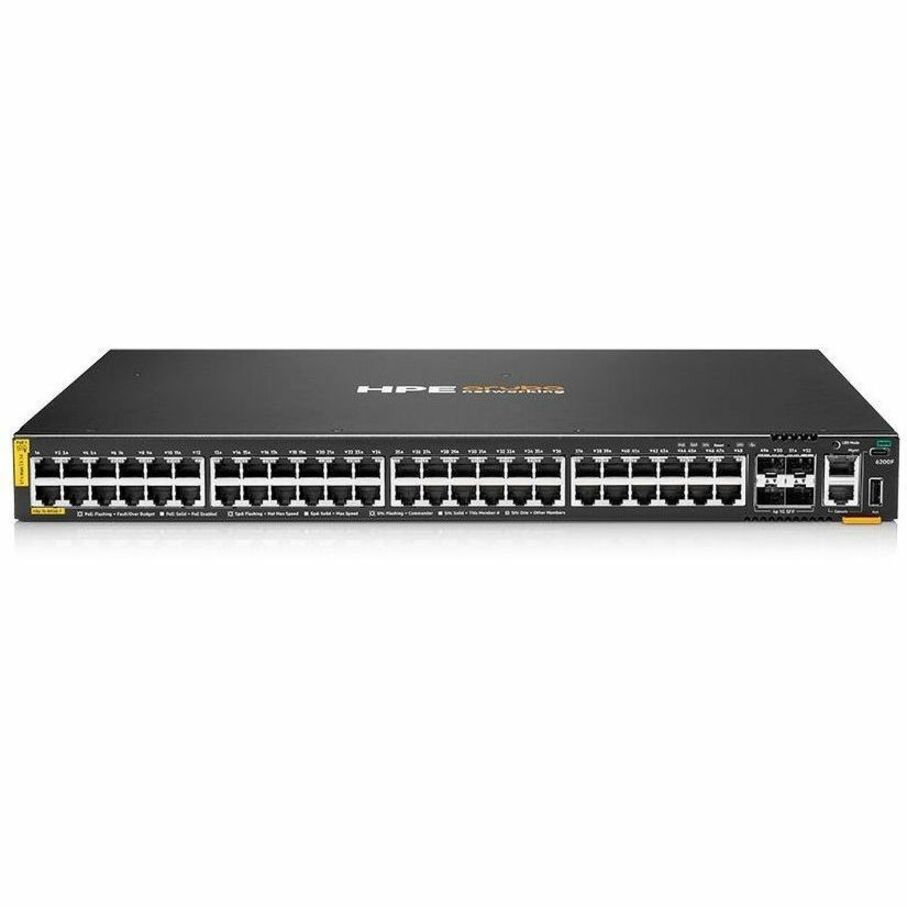

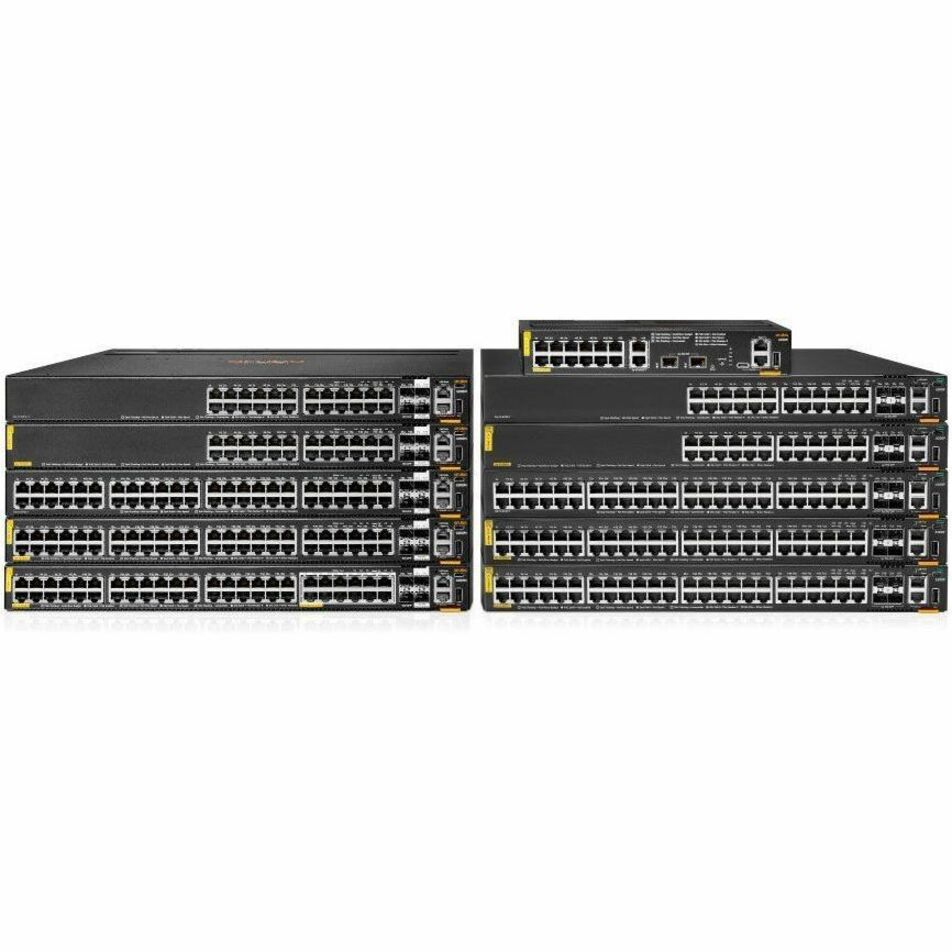

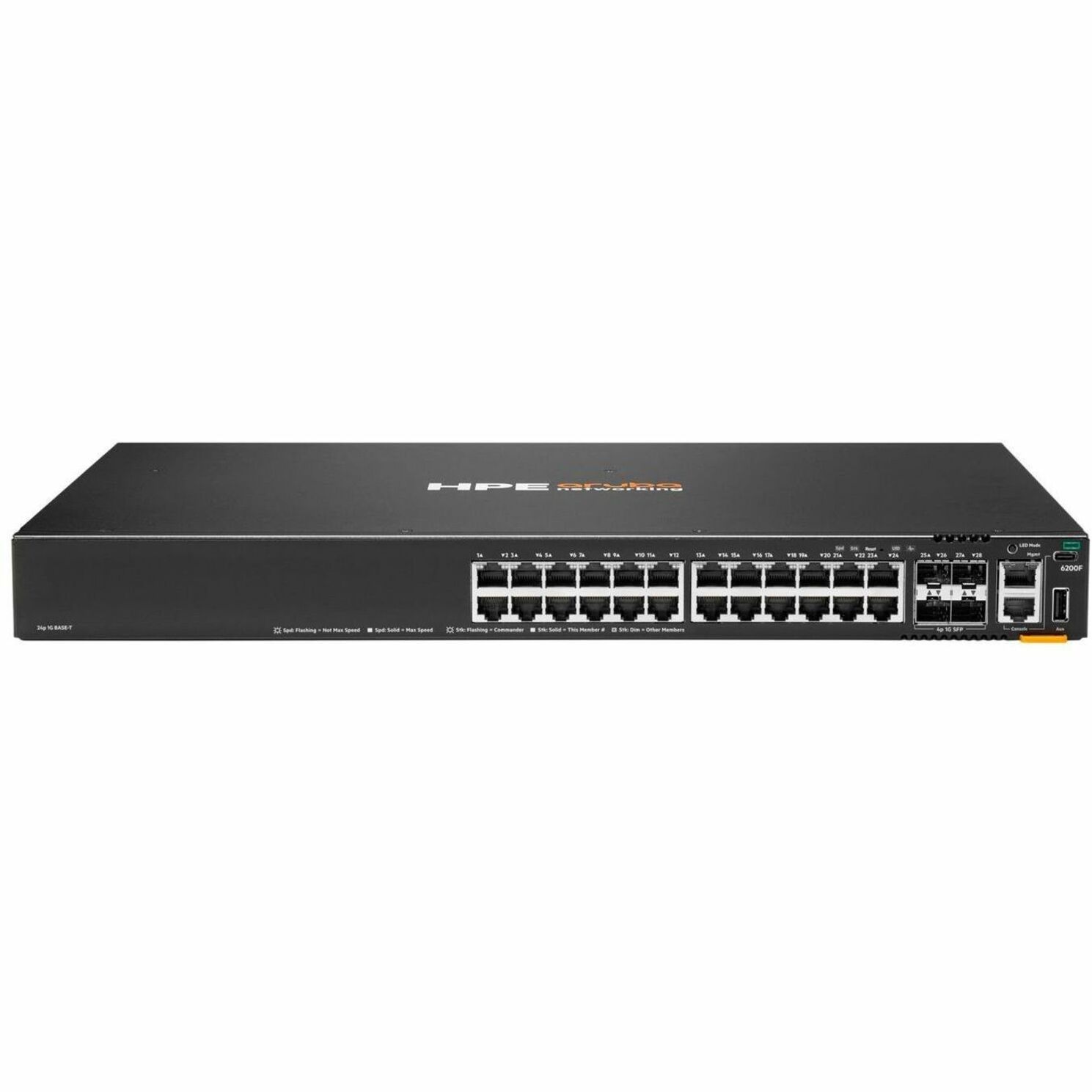

Aruba CX 6200 vs Cisco Catalyst 9200: Entry Campus Access Switch Comparison
The HPE Aruba Networking CX 6200 and the Cisco Catalyst 9200 are the two switches most organizations actually shortlist when they wire a branch office, a small campus, or a wiring closet. Both are fixed-configuration Layer 2/Layer 3-lite access switches with PoE+ and stacking, but they differ sharply on how they are managed, how they are licensed, and what you pay over five years. This guide breaks down performance, PoE, stacking, security, management, and procurement so you can pick the right entry access switch.
The short answer
For most branch and small-campus access deployments, the Aruba CX 6200 wins on total cost of ownership, baked-in security, and a cleaner management story: full Layer 3-lite features and dynamic segmentation ship in the base AOS-CX firmware with no recurring per-switch feature license. The Cisco Catalyst 9200 is the safer pick for shops already standardized on IOS XE and Catalyst Center who want one operating model end to end. Choose the CX 6200 to cut licensing overhead and simplify operations; choose the Catalyst 9200 to stay inside an existing Cisco estate.
HPE Aruba Networking CX 6200 vs Cisco Catalyst 9200, head to head
Specifications side by side
- Switch class
- Entry campus access (fixed)
- Entry campus access (fixed)
- Operating system
- AOS-CX
- IOS XE
- Access port options
- 12 / 24 / 48 ports of 100M/1GbE
- 24 / 48 ports of 1GbE (plus mGig SKUs)
- Built-in uplinks
- 4x 1G/10G SFP+ on 24/48-port models
- Fixed (9200L) or modular (9200) 1G/10G/25G/40G
- Stacking
- VSF front-plane, up to 8 members
- StackWise, up to 8 members
- PoE
- 802.3af/at PoE+ (up to 30W); 6200M adds 802.3bt Class 6 60W
- 802.3af/at PoE+ (up to 30W); UPOE on select SKUs
- PoE power budget
- Up to ~740W per switch (fixed 6200F PoE models)
- Varies by SKU and power supply
- Multigigabit (mGig)
- On 6200M / SmartRate models
- On dedicated mGig 9200 SKUs (up to 10G)
- Layer 3
- Static routing, ACLs, RIP in base firmware
- Static routing in Essentials; OSPF/EIGRP need Advantage
- Feature licensing
- No recurring per-switch feature license
- Network Essentials vs Network Advantage tiers
- Cloud management
- HPE Aruba Networking Central (cloud or on-prem)
- Catalyst Center or Meraki dashboard
- Warranty
- Limited lifetime on most models
- Enhanced Limited Lifetime Warranty
Where HPE Aruba Networking CX 6200 wins
- Layer 3-lite, ACLs, and Dynamic Segmentation included in base AOS-CX firmware with no recurring per-switch feature license
- Lower acquisition cost and materially lower 5-year TCO for typical access deployments
- Built-in 10GbE SFP+ uplinks on 24/48-port models avoid a separate uplink module purchase
- Choice of on-prem or cloud management with HPE Aruba Networking Central, plus full REST API automation
- Open, multivendor-friendly platform that does not lock the wider network into one vendor
Where Cisco Catalyst 9200 wins
- Native fit for organizations already standardized on Cisco IOS XE and Catalyst Center
- Modular uplinks on the full Catalyst 9200 scale to 25G and 40G for future-proofing
- Mature TrustSec, MACsec, and encrypted traffic analytics security stack
- Very large global support footprint, parts availability, and certified talent pool
- Optional Meraki dashboard path for cloud-first lean IT teams
Which one should you buy?
Multi-site branch refresh on a fixed budget with no Cisco mandate
Pick HPE Aruba Networking CX 6200. Base-firmware Layer 3-lite and Dynamic Segmentation plus no recurring feature license deliver the lowest 5-year cost across many wiring closets.
Wiring closet inside an existing all-Cisco campus run from Catalyst Center
Pick Cisco Catalyst 9200. Staying on one operating model and management plane reduces operational friction and reuses existing IOS XE skills and tooling.
Small campus that wants cloud-managed wired and wireless under one console
Pick HPE Aruba Networking CX 6200. Aruba Central unifies CX switches and Aruba APs in a single cloud pane without per-switch feature subscriptions.
Access layer that must grow uplinks to 25G/40G later
Pick Cisco Catalyst 9200. The full Catalyst 9200 modular uplink module supports 25G and 40G, giving more headroom than fixed 10G uplinks.
Healthcare or government site needing IoT and medical-device segmentation at the edge
Pick HPE Aruba Networking CX 6200. Dynamic Segmentation with gateway-enforced roles ships in base firmware, simplifying zero-trust policy at the access layer.
Frequently asked
What is the main difference between the Aruba CX 6200 and Cisco Catalyst 9200?
Both are entry campus access switches with PoE+ and stacking, but the CX 6200 runs AOS-CX and includes Layer 3-lite features and Dynamic Segmentation in base firmware with no recurring per-switch feature license. The Catalyst 9200 runs IOS XE and gates advanced features like dynamic routing behind Network Advantage licensing. The practical difference shows up most in 5-year total cost and management model.
Does the Aruba CX 6200 support stacking like Cisco StackWise?
Yes. The CX 6200 uses Virtual Switching Framework (VSF) front-plane stacking of up to 8 members in a chain or ring, managed as a single logical switch. It is comparable in concept to Cisco StackWise on the Catalyst 9200, though VSF stacks over the switch's own SFP/SFP+ uplink ports rather than dedicated stacking cables.
Which switch has lower total cost of ownership?
For most branch and small-campus access deployments the CX 6200 has the lower TCO. It typically costs less to acquire and, critically, does not carry a recurring DNA-style per-switch feature subscription. The Catalyst 9200's TCO climbs once Network Advantage licensing is added to unlock dynamic routing and advanced telemetry.
Do both switches support PoE+ for Wi-Fi APs and IoT?
Yes. Both deliver IEEE 802.3at PoE+ up to 30W per port for access points, cameras, and IoT endpoints. The Aruba CX 6200M and Cisco UPOE-capable 9200 SKUs go further with higher-power PoE for demanding devices and newer Wi-Fi access points.
Can the Aruba CX 6200 do Layer 3 routing?
It supports Layer 3-lite functions, static routing, ACLs, and RIP in the base AOS-CX firmware, which covers most access-layer needs. On the Catalyst 9200, equivalent dynamic routing such as OSPF or EIGRP generally requires the Network Advantage license tier rather than base Essentials.
Is cloud management available for both?
Yes. The CX 6200 is managed by HPE Aruba Networking Central in the cloud or on-premises, alongside CLI, web GUI, and REST APIs. The Catalyst 9200 is managed through Catalyst Center (formerly DNA Center), with an optional Meraki dashboard path for cloud-first teams.
Are these switches TAA-compliant and available on federal contracts?
Both vendors offer TAA-compliant SKUs suitable for US federal, SLED, and healthcare buyers. As an authorized HPE, HPE Aruba Networking, and HPE Juniper Networking reseller, we can source TAA-compliant Aruba CX 6200 configurations through GPC, SAP, and FAR vehicles, and we can advise on contract-compliant Catalyst 9200 alternatives where required.
Which switch is better for a new branch network without an existing Cisco footprint?
For greenfield branch and small-campus access without a Cisco mandate, the Aruba CX 6200 is usually the stronger value: lower upfront cost, no recurring feature license, built-in 10GbE uplinks on 24/48-port models, and a unified cloud or on-prem management plane that scales to wireless.
